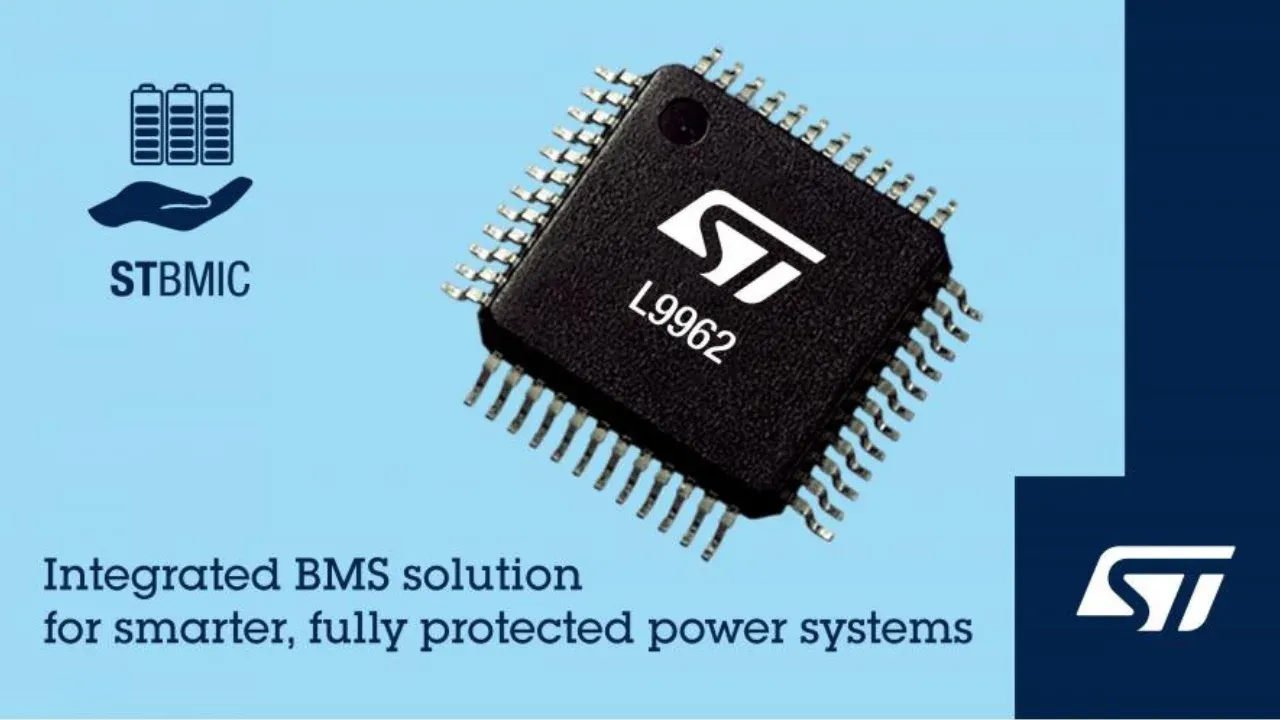

STMicroelectronics is targeting the growing demand for high-precision energy management in portable and semi-portable electronics with its new L9962 lithium-battery management IC. By integrating advanced monitoring and balancing capabilities, the company aims to extend battery longevity and safety across diverse applications, ranging from medical devices to light electric vehicles and uninterruptible power supply (UPS) units.
L9962 Technical Specifications and Precision
The L9962 is designed for lithium-ion (Li-ion) and lithium-polymer (Li-Po) battery packs containing up to 10 series-connected cells. To ensure rapid voltage correction, the IC integrates a 12-bit analog-digital converter (ADC) and provides a 70mA cell-balancing current. This hardware configuration allows for tighter voltage alignment and improved battery health. For current measurement, the chip utilizes a high-accuracy current-sense amplifier employing Coulomb counting, which maintains 0.25% accuracy across the full temperature range. Additionally, the device features an I2C interface, enabling host systems to monitor critical metrics such as state-of-charge (SOC) and state-of-health (SOH) while configuring measurement intervals.
Application Scope and Power Efficiency
STMicroelectronics is positioning this IC for industries requiring high reliability and extended runtime. The L9962 supports cordless power tools, medical equipment, e-bikes, and scooters, as well as backup energy storage systems. To address energy conservation, the chip features ultra-low quiescent current, offering a 5µA standby mode and a 2µA deep-sleep mode for products in transit. The integration of a 3.3V low-dropout regulator (LDO) further reduces external component requirements by powering microcontrollers or indicator LEDs. Safety is managed through continuous voltage monitoring, plausibility checking, and thermal detection via an NTC thermistor to prevent over-temperature or under-temperature conditions.
Key Takeaways
- The L9962 supports lithium-ion and lithium-polymer packs with up to 10 series-connected cells.
- It features a 70mA cell-balancing current and a 12-bit ADC for rapid voltage correction.
- The IC offers power-saving modes including 5µA standby and 2µA deep-sleep.
TechInsyte's Take
In our view, STMicroelectronics is addressing a critical bottleneck in the electrification of light mobility and portable professional tools: the need for granular, temperature-stable battery oversight. By integrating high-accuracy current sensing and thermal monitoring into a single TQFP package, the company is reducing the bill-of-materials complexity for OEMs. This move suggests a strategic focus on providing "all-in-one" resilience for mid-range energy systems where precision and power efficiency are non-negotiable.
Questions & Answers
How does the L9962 improve battery lifecycle management for enterprise hardware?
The IC utilizes a 12-bit ADC and 70mA cell-balancing current to ensure rapid voltage correction and tight cell alignment, which directly impacts the long-term health and stability of Li-ion and Li-Po packs.
What specific power-saving capabilities are available for devices in transit?
The L9962 provides ultra-low quiescent current options, specifically a 5µA standby mode and a 2µA deep-sleep mode, to maximize runtime during periods of inactivity.
Can the L9962 assist in preventing hardware failure due to thermal or electrical stress?
Yes, the device includes thermal monitoring via an NTC thermistor to detect temperature extremes and uses a high-accuracy current-sense amplifier to detect excessive charge/discharge currents and provide short-circuit protection.
What is the commercial availability and pricing structure for the L9962?
The L9962 is currently in production, available in a 7mm x 7mm 48-pin TQFP package, with pricing starting from $2.89 for orders of 1000 pieces.
